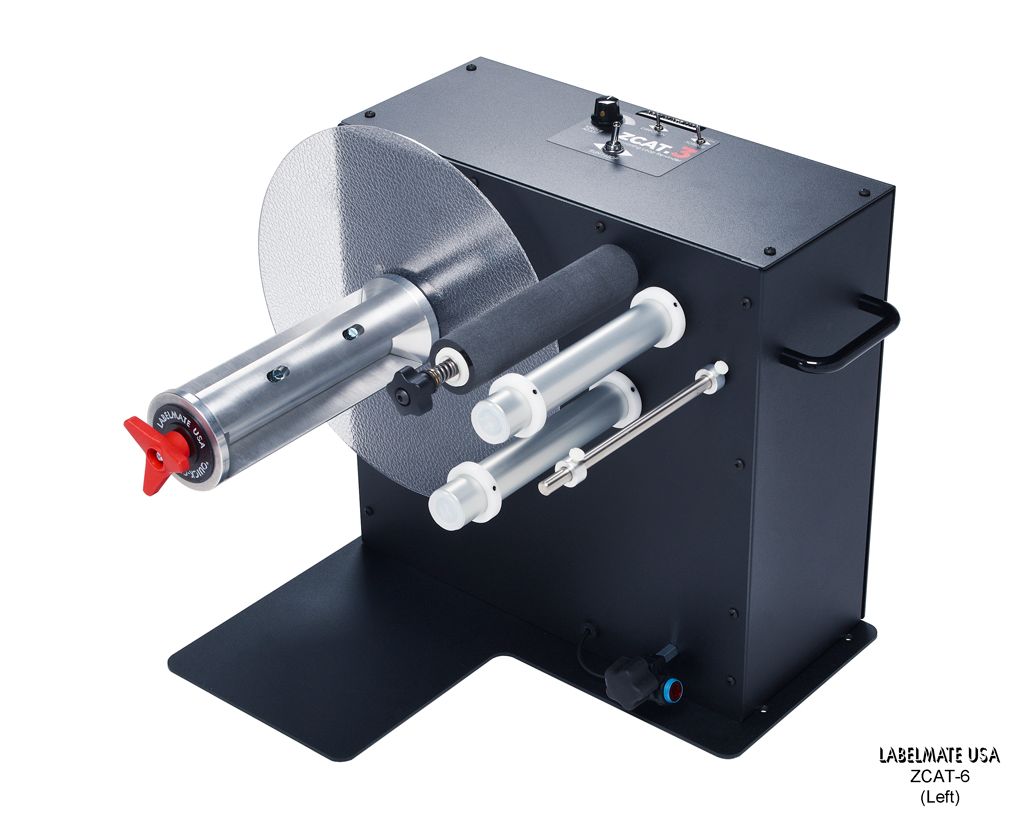

ZCAT-6 Rewinder (Max. Media Width 6.5", Max. Roll OD 12")

  • $1,495.00
    Unit price per

Rewinder with Adjustable Tension Control. For media up to 6.5" wide and roll diameters up to 12".

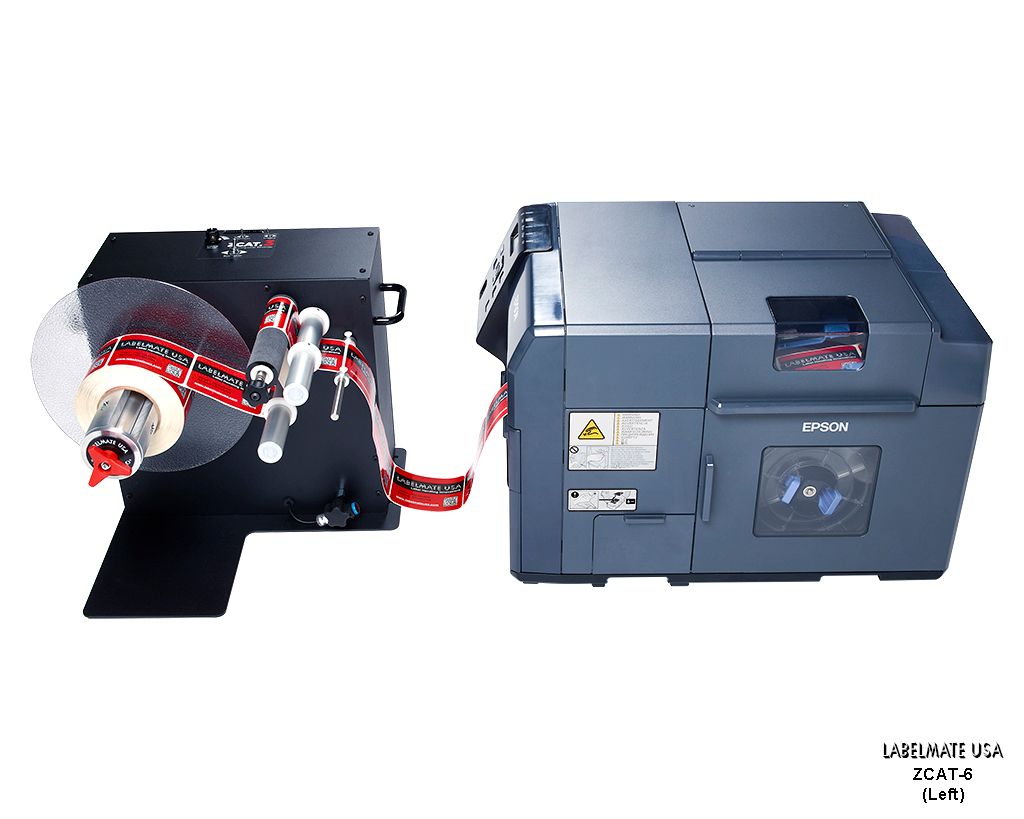

ZCAT-6 Tensioning Rewinders are the ideal solution for sensitive inkjet printers that back-feed and/or that don’t like being tugged-on by a Rewinder. With the ZCAT-6, the printer doesn’t even know that the Rewinder is there. A free-hanging loop of material forms between the printer and the Rewinder and an optical sensor on the Rewinder starts and stops the rewind action in conjunction with the printer. Fully adjustable tension control on the Rewinder assures that the finish roll is tight and the roll edge flush. Choice of orientation for the RIGHT side of the printer or the LEFT side of the printer.

Compatible with Epson ColorWorks C4000, C6000A, and C7500 Printers.

  • Max. Roll Diameter: 12" (305mm)
  • Max. Media Width: 6.5" (165mm)
  • Core Diameter: 3" (76mm)
  • Position: Left Side of Printer or Right Side of Printer
  • Core Holder: Mechanical Chuck
  • Full 5-Year Parts and Labor Limited Warranty
  • Size: 22"×22"×22" (560x560x560mm)
  • Weight: 50 lbs.
  • Item #: 80-203-0080
