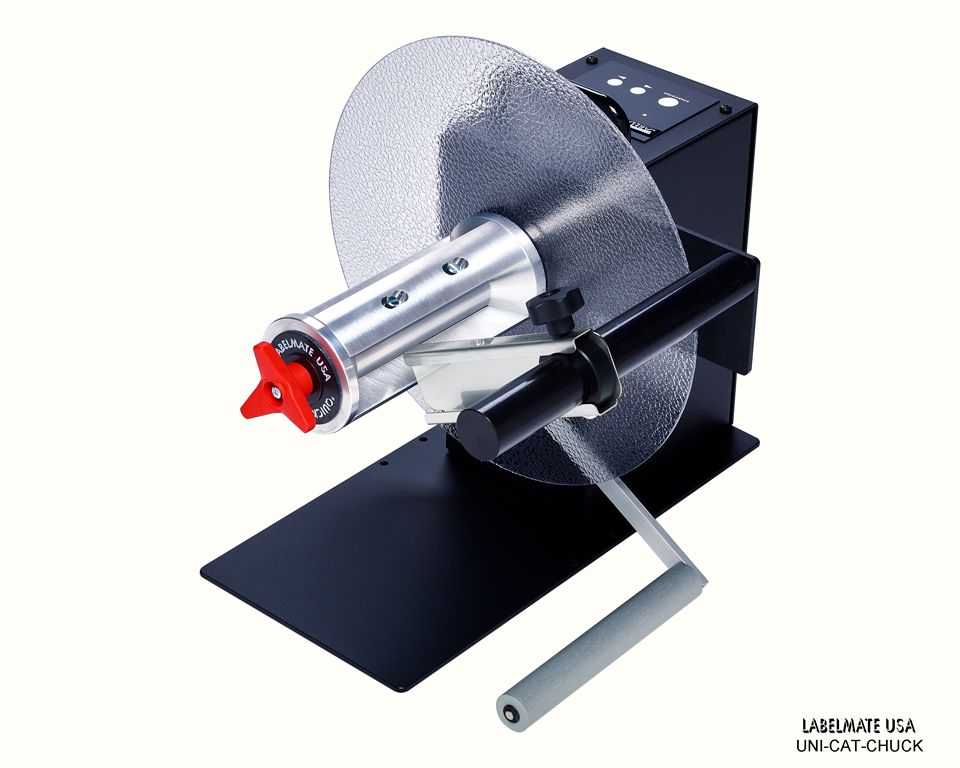

UNI-CAT-CHUCK Universal Rewinder/Unwinder (Max. Media Width 6.5", Max. Roll OD 12")

  • $1,300.00
    Unit price per

Universal “Smart” Rewinder/Unwinder for media up to 6.5” wide and roll diameters up to 12".

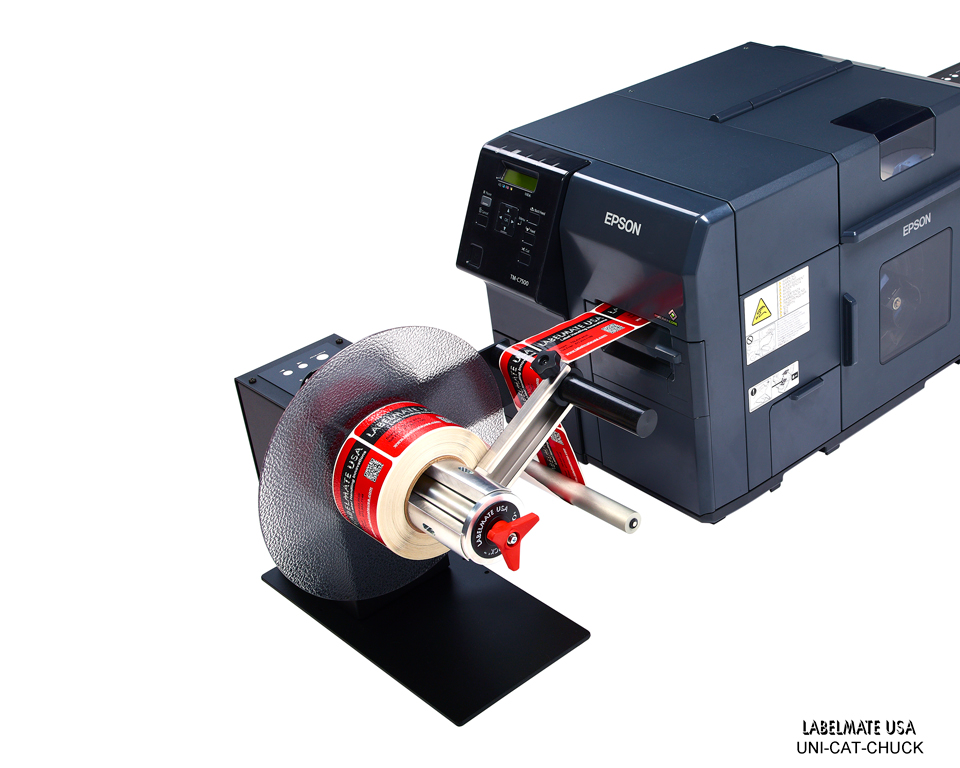

Compatible with Epson's Colorworks C4000, C6000A, and C7500 Printers.


The new UNI-CAT Rewinder/Unwinder is the most intelligent and universal Winder inthe LABELMATE product line, and can be used as both a Rewinder and an Unwinder.The UNI-CAT synchronizes with the printer and automatically and imperceptibly changes direction with the printer. This makes the UNI-CAT the ideal companion for printers that back-feed or that are tension-sensitive. In addition, the UNI-CAT is self-teaching and automatically matches the speed of theprinter without the need of any operator intervention. The UNI-CAT also senses when the end of roll is reached and automatically stops rewinding. The rugged, heavy-gauge steel construction of the UNI-CAT enables it to be simply set in place in the desired position. Special anti-slip feet prevent the unit from moving.With various core sizes, label widths, roll diameters and options to choose from, there is a UNI-CAT Winder to fit virtually any job you may have.

  • Max. Roll Diameter: 12” (305mm)
  • Core Diameter: 3” (76mm)
  • Core Holder: Mechanical Chuck
  • Max. Media Width: 6.5” (165mm)
  • Bi-directional “smart” Rewinder/Unwinder – Synchronized with Printer
  • Automatic responsive speed control – Synchronized with Printer
  • Speed up to 50 inches/sec (125cm/sec)
  • Rewind tension control
  • Automatic stop at end of roll
  • Full 5-Year Parts & Labor Limited Warranty
  • Size: 20”x20”x11” (508x508x280mm)
  • Weight: 31 lbs. (14 kg)
  • Product Code: 80-203-0083
